    Core Loss Tester

    S30 and S30S Series:
    Stacks built with punched laminations can have lot of quality issues. Even though the lamination material is tested in sheet format before any process, that alone is not sufficient to guarantee good quality stators. Wear and tear of the punch, bad welding, bad insulating coating in annealing add to the magnetic losses in the stator. It is always advisable to test the stator core in it’s final format before winding to ensure good quality throughout the production batch.

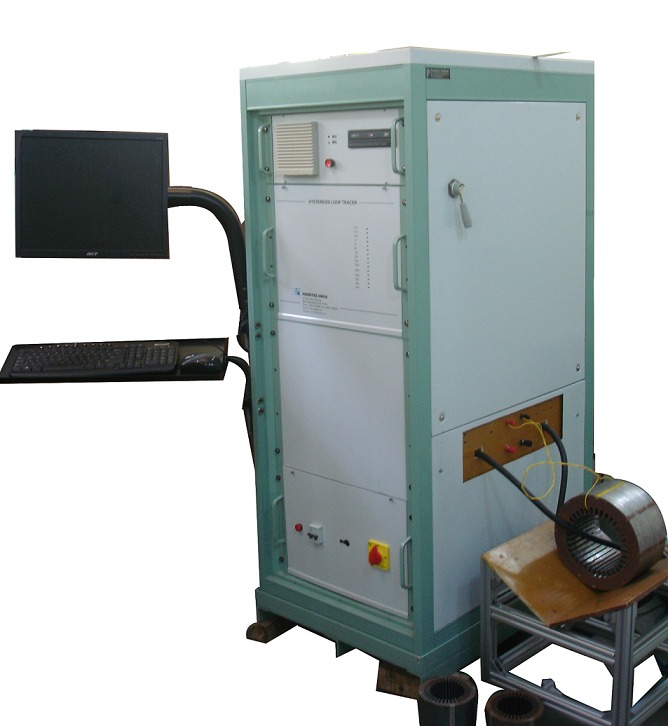

    Core Loss Tester
    Dimensions: As high as 1000mm OD
    Frequency of Testing: 50 Hz. 60 Hz testing can be offered
    Max. Field: 20 A/cm, for testing at 1.7T, equipment can be offered
    Max Flux Density: 3T
    Accuracy: 1%
    Properties Tested: Watt Loss, Permeability, Saturation Flux Density, Remanence, Coersivity, Hrms, Brms
    Wide Material Type Testing—CRGO, CRNO etc.
    ASTM/ IEC /IS Standard Compliance
    BH Loop Graphical Display
    Calibration Traceable to International Standards
    Fully computerized system, Very Low Measurement Time,
    Data Automatically Generated and Saved.
    No Operator Skill Required, Easy Installation and Operation.
    All accessories Supplied for Smooth Running.
    Detailed Test Reports for Design Applications and Summery Test Reports for Customer Submission
